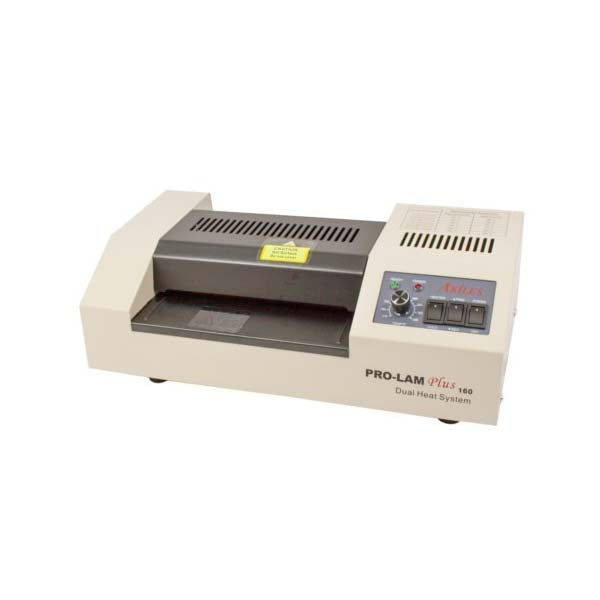

Akiles ProLam Plus 160 Pouch Laminator
Akiles ProLam Plus 160 Pouch Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Heated Roller System | 2 Hot/ 2 Cold |
| Max. Pouch Thickness (mil) | 10 |
| Max. Laminating Speed (Inches/Min) | 21 |
| Throat Capacity (Inches) | 6.3 |
| Laminator Type | Pouch Laminator |
| Number of Rollers | 4 |
| Warranty | 1 year |
| User Type | Large Office |
| Reverse Function | Yes |
| Temperature Settings | Adjustable |
| Cold Lamination | Yes |
| Weight | 14 lbs |
| Dimensions (H”xW”xD”) | 14.5" x 8.5" x 4.5" |
Product Description:
Features of the Akiles ProLam Plus 160 Laminator
- 6.3 inch throat capacity supports documents and pouches up to 6.3 inches wide

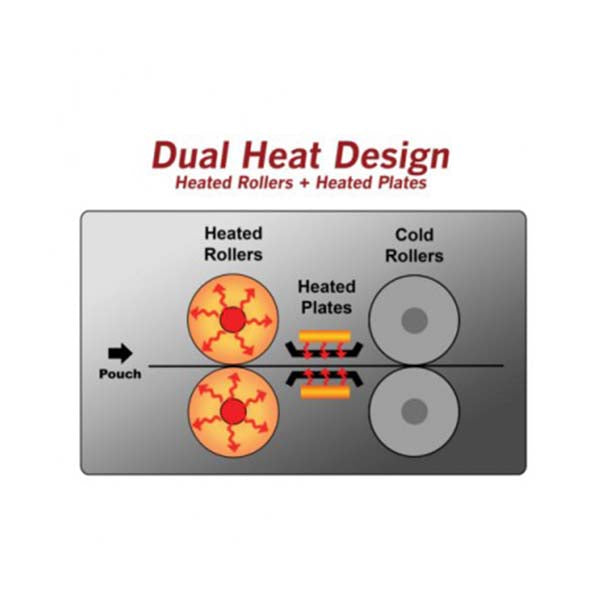

- Dual heat system with heated rollers and heated plates for even heat distribution
- Maximum pouch thickness up to 10 mil for standard document protection

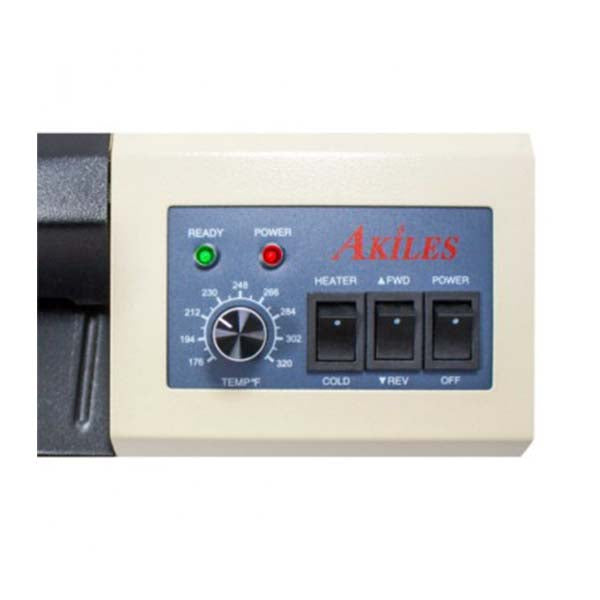

- Variable temperature control with electronic PCB for precise heat adjustment
- Heat and cold lamination modes for thermal and cold applications
- Forward and reverse switch for pouch re-alignment and jam clearing
- Silicone rollers allow carrier-free lamination
- Heavy duty metal housing with ready light indicator and 1 year warranty
The ProLam Plus 160 is a compact heavy duty pouch laminator designed for offices, schools, and workstations that require reliable small format lamination. Equipped with a 6.3 inch throat, the Akiles ProLam Plus 160 Laminator allows smooth pouch feeding for ID cards, photos, badges, and small documents. Its dual heat system combines heated rollers and heated plates to deliver balanced heat distribution, helping produce clear and bubble free laminated results even at lower temperature settings. Capable of handling laminating pouches up to 10 mil, it supports everyday document protection across common pouch thicknesses.
Backed with electronic temperature control, the Akiles ProLam Plus 160 allows users to fine tune heat settings for different materials and finishes. The heat and cold switch provides flexibility for both thermal and cold lamination tasks, while the forward and reverse switch simplifies jam removal and pouch repositioning. Silicone rollers enable carrier-free lamination, improving workflow efficiency and reducing setup steps. A durable metal housing, ready light indicator, and automatic cooling shutdown features contribute to dependable long term performance in busy environments.
Frequently Asked Questions
Q: Can we laminate photos in this Akiles ProLam Plus 160?
A: Akiles Pro-Lam Plus 160 can laminate bubble free photographs.
Q: Does this unit require carrier prior to laminating tasks?
A: Akiles Pro-Lam Plus 160 provides the flexibility to laminate with or without, although laminating with a carrier is safer.
Q: How long does Akiles ProLam Plus 160 takes to warm up?
A: As this unit is used for heavy duty laminating jobs, therefore the appliance requires 5 to 7 minutes to heat up.
Q: For how long am I entitled to warranty?
A: Akiles ProLam Plus 160 Pouch Laminator comes with 1 year warranty.
