Akiles  |  SKU: AMB-1

Akiles MegaBind-1 Manual Comb Binding Machine

400 (Sheets) Binding Capacity, 25 (Sheets) Punching Capacity, 14" Punch Length & 24 Disengageable Pins

Click here to find more Binding Supplies & Accessories for Akiles

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Akiles MegaBind-1 Manual Comb Binding Equipment
Manufacturer Akiles
Punch Length (inches) 14
Punch Pitch 9/16
Paper Punch Volume (lbs.) 20
Category MegaBind
Binding Operation Manual
Binding Type Comb Binding
Punch Operation Manual
Binding Capacity (Diameter") (3/16 - 2)
Binding Capacity (Sheets) 12 - 400
Number of pitches 1
Paper Size A4 Size
Punch Hole Size (mm) (5/16 x 1/8)
Depth Margin Adjustable
Warranty 1 Year
Country of Origin Taiwan
User Type Small Office
Closing Mechanism Vertical
Reverse Switch No
Waste Drawer Yes
Side Margin Adjustable
Disengageable Pins 24
Punch Hole Shape Rectangular
Number of Holes 24
Punching Capacity (Sheets) 25
Product Description:

  • Manual punch
  • 14" (24 dies) punching length
  • 9/16" pitch
  • Rectangular (5/16" x 1/8") hole punch
  • 3/16" to 2" comb binding capacity
  • Up to 20 sheets (20 lbs.) punching capacity
  • Double-handle system

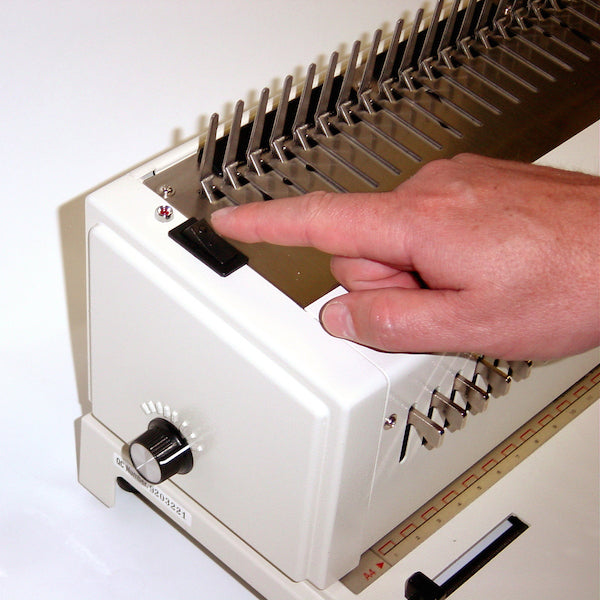

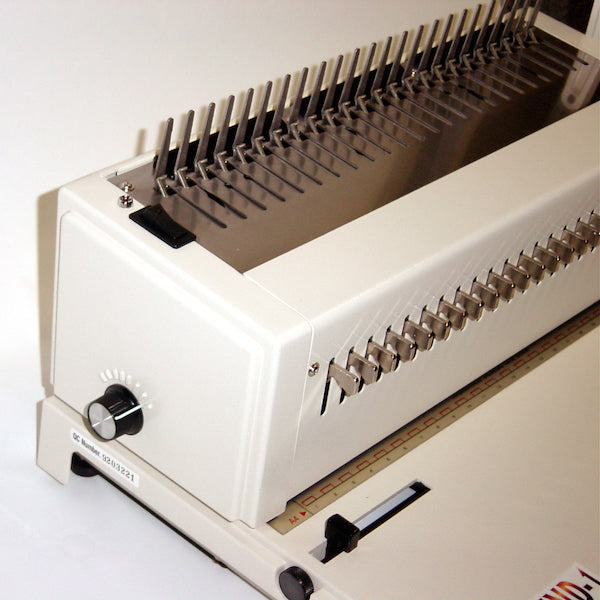

  • Continuous binding control
  • Die disengagement pins
  • Side margin control
  • Waste compartment

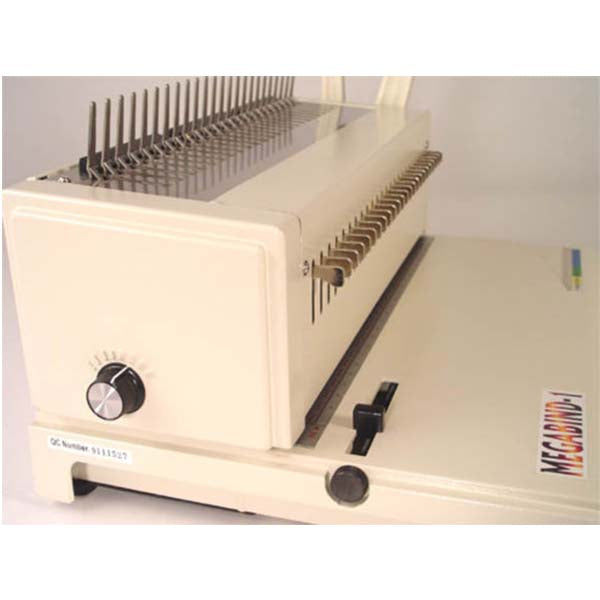

  • Punch margin control

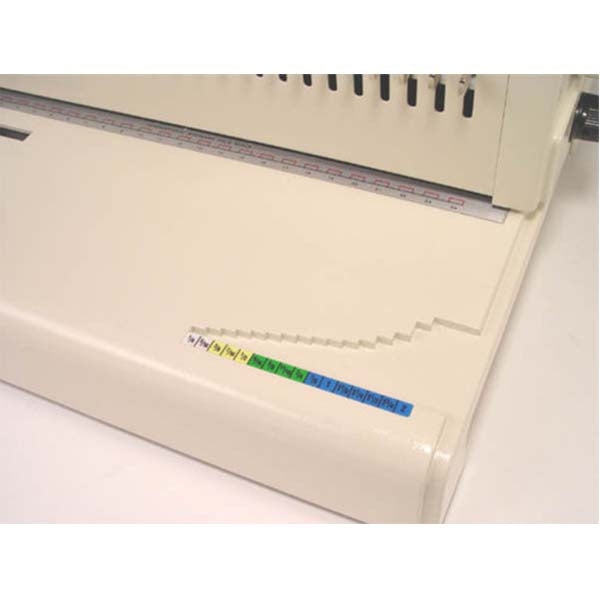

  • Binding guide

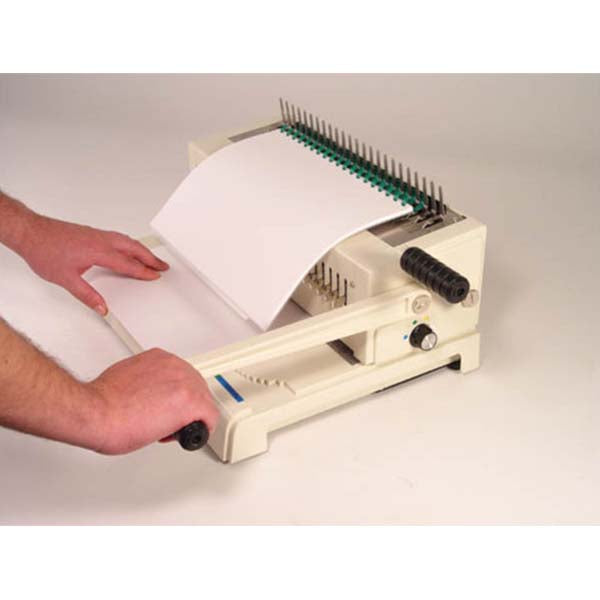

The Akiles MegaBind-1 Punching & Binding Equipment gives you the control you need for your book binding needs, binding documents up to 2" thick. Akiles MegaBind-1 Punching & Binding Equipment features an adjustable side guide which allows you to align the paper for the best punch. The Akiles MegaBind-1 Punching & Binding Equipment also has disengaging punch pins which allow for precision punching of any binding edge up to 14".

Frequently Asked Questions

Q. What range of spines can I employ with my Akiles MegaBind-1?

A. Akiles MegaBind-1 can work with all sizes of plastic comb binding spines ranging from 3/16" diameter spine to up to 2" diameter spine

Q. How many dies does Akiles MegaBind-1 have?

A. Akiles MegaBind-1 has 24 fully disengageable dies that further make it easy for the machine to accommodate any document length up to 14".

Q. Why are there two handles fixed onto the unit?

A. These two handles reduce the operating time and stress by simultaneous operation of the punch and the comb-opener with their respective handles.

Q. Which materials should not be punched using Akiles MegaBind-1?

A. Input comprising of more than 2 clear covers, metal, wood, or any other heavy-duty material that could affect the punching heads should not be punched with Akiles MegaBind-1.

Q. Where is the waste drawer located on the Akiles MegaBind-1?

A. A waste compartment is located at the back of Akiles MegaBind-1.
