Akiles  |  SKU: ACM-EPI41

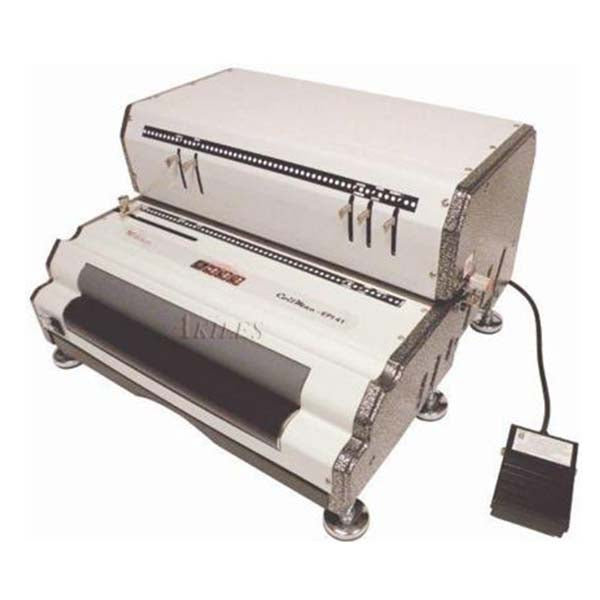

Akiles CoilMac-EPI Electric Coil Binding Machine

$2,218.35
230 (Sheets) Binding Capacity, 25 (Sheets) Punching Capacity, 13" Punch Length & Standard 4:1 Punching Pitch

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Akiles CoilMac-EPI Electric Coil Binding Equipment
Manufacturer Akiles
SKU ACM-EPI41
Punch Length (inches) 13
Punch Pitch 4:1
Paper Punch Volume (lbs.) 20
Category CoilMac
Binding Operation Electric
Binding Type Coil Binding
Punch Operation Electric
Binding Capacity (Diameter") 7/8
Binding Capacity (Sheets) 230
Number of pitches 1
Paper Size A4 Size
Punch Hole Size (mm) 4
Depth Margin Adjustable
Warranty 1 Year
Included Accessories Coil Crimper, Coil Diameter Selector
Country of Origin Taiwan
Closing Mechanism Vertical
Reverse Switch Yes
Waste Drawer Yes
Side Margin Adjustable
Disengageable Pins 5
Punch Hole Shape Round
Number of Holes 53
Punching Capacity (Sheets) 25
Product Description:

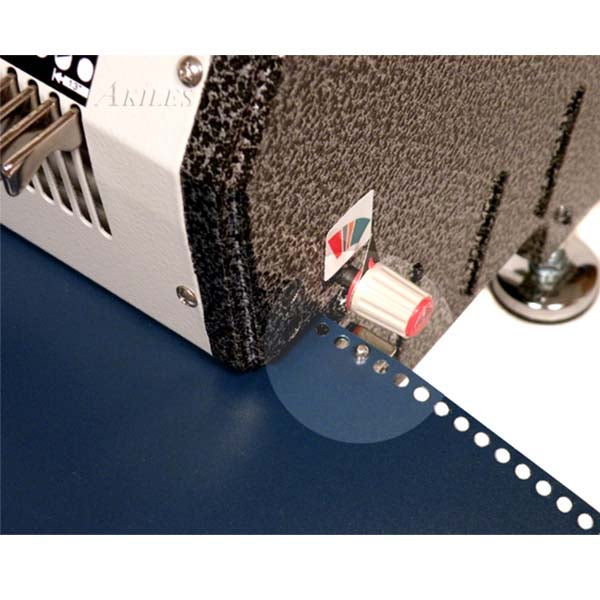

  • Round Holes: Standard 4mm round holes.
  • 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-EPI very simple to use.
  • Standard 4:1 Pitch: Standard pitch for coil binding. Punches 43 holes in an 11" sheet.

With its heavy-duty punch motor, built-in electric coil inserter, and complete system of functions, AkilesCoilMac-EPI makes coil binding fast, easy, convenient, and professional, making it the ideal partner for commercial volume workloads. The CoilMac-EPI offers a heavy-duty motor and state-of-the-art mechanisms.


All Electric Operation: Powerful punching & inserting capability with a simple press of the foot pedal. With an Extended Single Punching Length (13") With open ends & continuous punch guide to easily punch documents of any length (up to 26") and High Volume Punch Capacity Suggested up to 25-sheet for 20 lbs paper. Super Strength Punch Mechanism with exclusive "Precision Guiding System" Blade Set Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive "precision guiding system" guarantees a sharp & clean perforation every time. The AkilesCoilMac-EPI comes with an Electric Reverse (Anti-Jam) Function: For trouble-free punching, and also the AkilesCoilMac-EPI has a Full-Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives the operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible with an Industrial-Grade Roller Motor: Heavy-Duty motor. The AkilesCoilMac-EPI has an Open Throat and Continuous Punch Guide for easy alignment and punching of longer documents up to 26".
