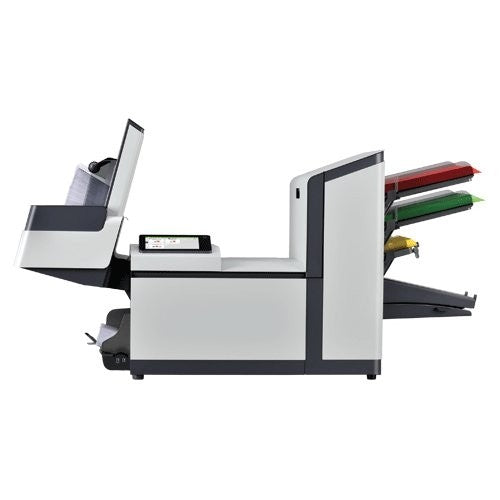

Formax FD 6210 Advanced 2 Folder & Inserter
Formax FD 6210 Advanced 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6210 Advanced 2 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6210 Advanced 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6210-Advanced 2 |
| Dimensions (H”xW”xD”) | 36” H x 16.5” W x 49” D |
| Envelope Hopper Capacity (Envelopes) | 150 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 2200 |
| Duty Cycle (Pieces/month) | 15000-20000 |
| Feed Stations w/ Sheet Capacity | 2 Feed Station with 325 Sheet Capacity Each and 1 BRE feeder with 50 BREs or 325 Inserts |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 120V |

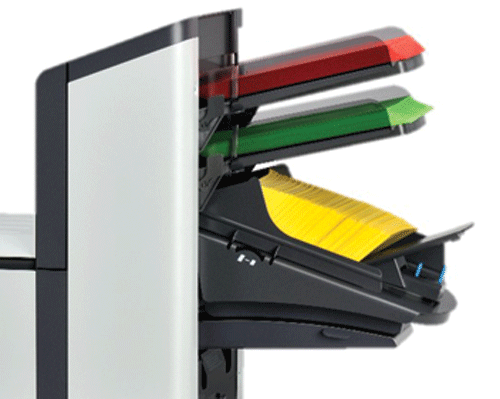

| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Single or Multi-Code Reading Licenses, Productivity Package, Front or Rear Side Exit Tray and Catch Tray |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 6.3 - 9.7 |
| Envelope Size (H") | 3.5 - 6.35 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:
Features of FD 6210- Advanced 2 Folder & Inserter

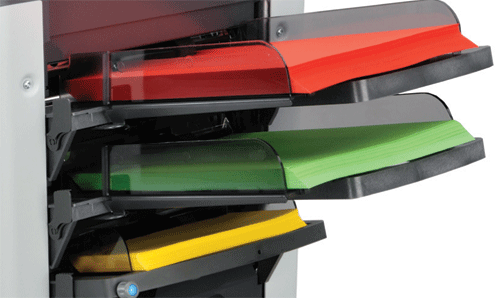

- The machine is equipped with two sheet feeders and one insert/BRE feeder
- Capable of processing up to 2000 to 2200 pieces per month and up to 15000 pieces per month

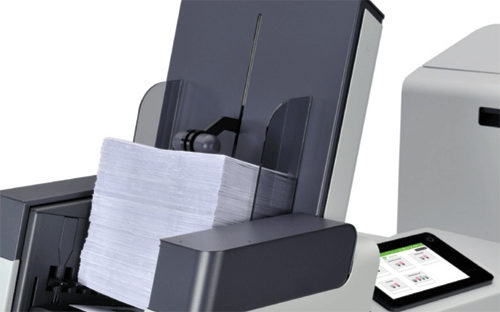

- High capacity vertical stacker holds up to 500 ready pieces
- Features 7” full-color touchscreen control panel with graphical interface for easy use
- Paper and envelope sensors indicate on control panel to assist operators
- Feeder and top loading envelope hopper allow folding and inserting together
- Capacity to store recurring 50 programmable jobs for ease
- Fold types supported are C, V, Z, double parallel, no fold
- Correctly reads OMR, 1D and 2D barcodes printed at any side on a document
- Eco mode is enabled that sleeps device when inactive for an hour
Performance of FD 6210- Advanced 2 Folder & Inserter
The FD 6210 series includes its Advanced 2 device with advanced folding and inserting technology that provides user friendly features. The Advanced 2 is consists of two sheet feeders and one insert/BRE feeder. This fast speed inserter is capable of processing 2000 to 2200 pieces per month and has the monthly cycle of 15000 pieces per month. The Advanced 2 is a user-friendly machine as it is equipped with 7” full-color touchscreen control panel with graphical interface for easy use and the AutoSetTM for one-touch setup of new jobs by automatically measuring paper lengths, envelope sizes and fold lengths.
Each feeder can hold up to 325 sheets and the two feeders and the business reply envelopes feeder allows users to feed more documents for folding and inserting enhancing the productivity of the company. The feeders can be linked and that means when the first feeder is empty, the device switches to the other feeder. The Advance 2 has a clamshell design that allows easy access to the paper path and correctly reads OMR, 1D and 2D barcodes printed at any side on a document. The device is eco-friendly as it puts the Advance 2 on standby if inactive for an hour.
Recommendation & Warranty
The 6210 Advanced 2 is a compact and a sturdy machine that offers users with accuracy and reliability. With the processing speed of the inserter it will increase the productivity of the workplace and eliminates manual work. For customer satisfaction the device is backed by 90-day warranty on parts and labor excluding wearables and is a top-notch low volume inserter for small businesses.
Frequently Asked Questions
Q: For how long am i entitled to warranty?
A: The Formax 6210 series comes with a 90 day warranty on parts excluding wearables and labor.
Q: My envelopes are double fed in to my 6210 inserter, what should i do?
A: This may occur when envelopes not placed properly in the hopper. Check and replace accordingly.
Q: How do i maintain my 6210 insterer properly?
A: Keep the system in proper condition by removing dust, paper remains etc daily.
Q: What is a folder unit?
A: The fold unit folds the documents and 6210 series can fold into C,V,Z, double V fold and no fold.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs alot then you can save it as a job for instant use.
