Formax  |  SKU: FD 7500-Special4A

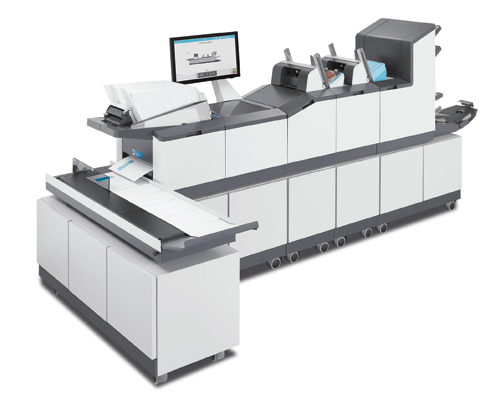

Formax FD 7500 Special 4A Folder & Inserter

$80,195.00 $92,224.25
Inserter w/Tower Feeder - Includes four 500-sheet Flex-Feeders, Color Touchscreen, Accum/Divert, Scanner, Cabinets, Conveyor

Spec Sheet: View PDF File

Product Specifications
Product Name Formax FD 7500 Special 4A Folder & Inserter
Manufacturer Formax
SKU FD 7500-Special4A
Dimensions (H”xW”xD”) One Feeder plus Tower Feeder w/Inserter Base & Cabinets: 59"x 104 x 27
Envelope Hopper Capacity (Envelopes) Top-loading, up to 800 standard envelopes or 500 flat envelopes (landscape orientation)
Setup Autoset, one-touch setup
Speed (Pieces/hr) 6,000
Duty Cycle (Pieces/month) 300,000
Feed Stations w/ Sheet Capacity 4 Sheet Flex-Feeders (500 sheet capacity)
Warranty 92 day limited warranty
Country of Origin United States
Power Supply (Volts) 112 V, 60 Hz, 10Amp
Optional Accessories Intelligent & non-Intelligent High Capacity Feeders: Feed up to 1,000 sheets, Barcode Reader for 1D & 2D Barcodes, OMR & BCR Software
Programmable Fold Applications Unlimited
Programmable Fold Applications Unlimited
Fold Types C, Half, Z, Double Parallel, and No Folds
Double Feed Detection Yes
Envelope Size (W") 8.9 - 13
Envelope Size (H") 3.9 - 10
Product Description:

  • Formax Special 4A with a phenomenal Modular layout allowing the addition of up to 11 feed stations

  • Comes equipped with four 500-sheet Flex Feeders that enhance the convenience in document feeding

  • Works at a processing speed of up to 6,000 envelopes in one hour

  • Folds efficiently up to 8 sheets of paper in one go

  • Features Automatic Document Measurement that determines the input parameters automatically

  • Allows unlimited programmable jobs for facilitating the users in recurring jobs

  • Comes with a Sheet feeder that has the capacity for up to 2,000 sheets (combination of 500 & 1,000 sheet feeders)

  • Possesses an Envelope feeder that has the capacity for up to 800 #10 or 6" x 9.5" envelopes or up to 500 10" x 13" landscape flats

  • Comes with pre-programmed fold types of C, Half, Z, double parallel as well as no fold

  • Handles mail pieces up to 1/4" (6mm) thick adeptly

  • Boasts a High-Speed Accumulator / Divert Deck fully equipped to accommodate up to 300 sheets

  • Offers an efficient 4ft Output Conveyor capable of being used in line or at a 90-degree angle

  • Comes with custom cabinets that offer mobility and additional storage space

The Formax FD 7500-Special 4A Folder Inserter is an adroit solution for professional handling of all the paper folding and envelope filling jobs you might encounter at your work setting. The FD 7500 Special 4A presents four 500-sheet Flex-Feeders that multiply the productivity four times. But users can always increase it by adding up to 11 feed stations due to the unique modular layout of this product. Because of these high-capacity feeders, this machine can process a variety of media, especially the coated and glossy material.

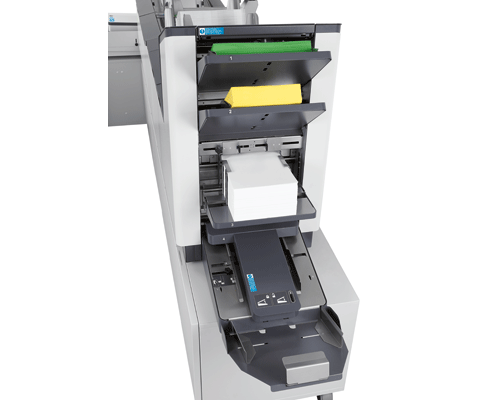

This model from the Formax FD 7500 series offers Tower Feeder linked with two scanners that facilitate the reading of various codes on the documents and envelopes. It does it proficiently particularly in the case of reading 1 and 2-track OMR, 1D barcodes and 2D Data Matrix, irrespective of the location of code on the input.

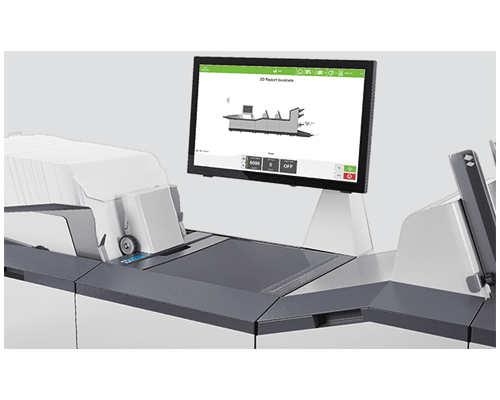

This Formax FD 7500 folder inserter offers an intuitive color touchscreen control panel where users can set their desired task specifications with few touches of their finger. Its graphic-based photo-image of the inserter makes document editing possible during the configuration process. If your job includes performing some recurring folding and inserting tasks, then this machine can make your life easy with its unlimited programmable jobs from where you can simply select and run the job of your choice. To cut it short, Formax FD 7500-Special 4A Folder Inserter offers you the opportunity of giving your best shot without exhausting your time and energy.
