Formax  |  SKU: FD 7102XT-Standard3

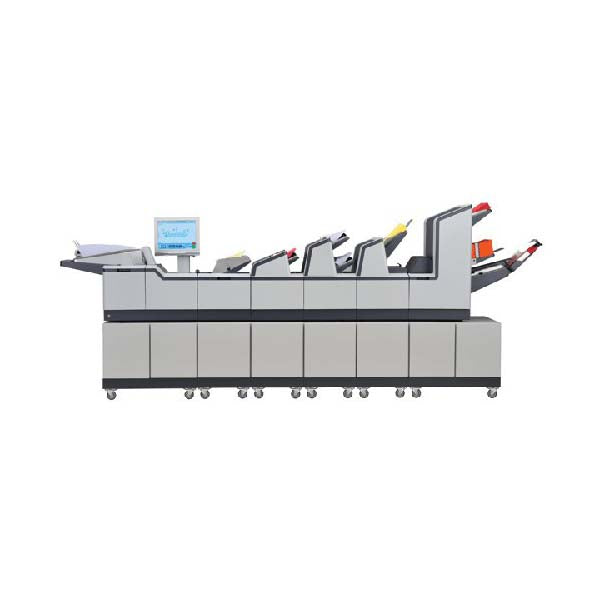

Formax FD 7102XT-Standard 3 High Volume Modular Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 7102XT-Standard 3 High Volume Modular Inserter
Manufacturer Formax
SKU FD 7102XT-Standard3
Dimensions (H”xW”xD”) 36 x 107 x 25 (Tower Feeder w/Inserter Base)
Envelope Hopper Capacity (Envelopes) 800
Setup Autoset, one-touch setup
Speed (Pieces/hr) 5,500
Duty Cycle (Pieces/month) 180,000
Feed Stations w/ Sheet Capacity 3 Standard Feeders (500 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 5.5 - 16
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 110V AC, 60 Hz
Optional Accessories Various Modules (Insert feeders, intelligent feeders, feeder folders, BRE feeder), Envelope Catch Tray, Envelope Output Sorter.
Programmable Fold Applications Unlimited
Programmable Fold Applications Unlimited
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 3.5 - 6.48
Envelope Size (H") 6 - 10.37
Max. sheet Size (W") 5.5 - 9
Product Description:

  • Formax FD 7102XT-Standard 3 with simple job setup and modular design for greater division of labor among 17 attachable stations to the maximum

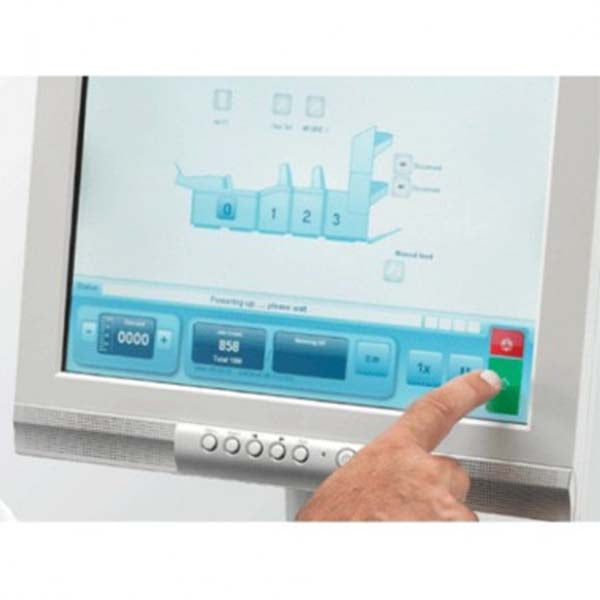

  • Vibrant user interface that is 15" wide and touch-sensitive and keeps the users updated about the time remaining for the final output to be delivered
  • Allows up to 6mm thick stacks of documents for inserting jobs
  • Efficiently folds up to 8 sheets in one go
  • Capable of applying fold types like C, Half, Z, Double Parallel and even no fold at all
  • Document Feeder accommodates up to 1,000 sheets while Envelope Feeder has the space for up to 800 envelopes
  • Infrared and electromechanical Double Document Detection feature available to ensure accurate filling of the envelopes
  • Automatic Document Measurement smartly determines the size of the document and accommodates it accordingly
  • Bottom-feeding system that allows the work to continue without hindrance

Formax FD 7102 inserter is an amazing folder-inserter for office use that gets these manual jobs quickly done in no time. It has a number of interesting features and a great speed at which it fills the envelopes with accuracy, making them ready to be delivered. Along with the standard features that a Formax high volume inserter can have, there are some unique specs too like code reading capability, wide sealing liquid reservoir, High-Capacity Output Conveyor, tower and feeder folders for dealing with glossy paper and many other highlights that make FD 7102XT-Standard 3 extra special.

Video of Formax FD 7102XT-Standard 3 High Volume Modular Inserter
